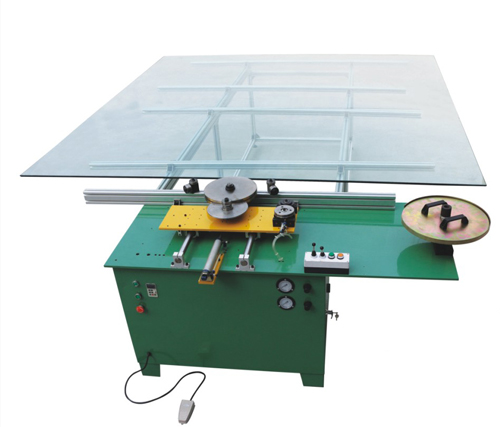

Semi-Automatic Horizontal Big Size Winder

For big size spiral wound gasket ID 300mm to 2500 or 3200mm with or without inner ring. Gasket thickness 4.5mm (also for 3.2mm, 6.4mm and 7.2mm by changing roller parts, V or W shape winding)


Send Inquiry


Description
Specification as following:
STYLE KXT E2500B Manual winder KXT E2500C Semi-automatic winder
Producing ability SWG with or without IR SWG with or without IR
SWG thickness 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option)
Maximum gasket OD 2500mm or 3200mm 2500mm or 3200mm
Minimum gasket ID 300mm 300mm
Total power 2.2kw 8kw
Spindle motor power 0.75kw 0.75kw
welder power / 6kw
Power supply 380V/220V for option, 3 phases 380V/220V for option, 3 phases
linear speed 0-800mm/s 0-800mm/s
Air compressor 0.6—0.8 MPA 0.6—0.8 MPA
Frequency Converter 2.2G 2.2G
PLC / xinjie
Machine measurement 3400*2600*980mm 3400*2600*980mm
Machine net weight 500kg 550kg
