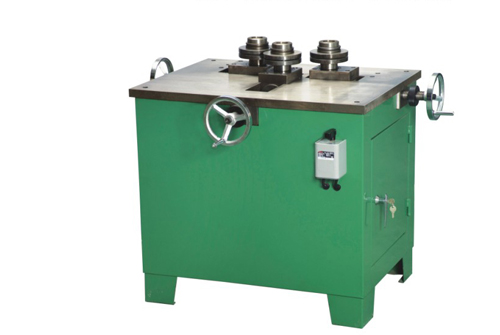

Ring Bending Machine

To bend the SS strip into inner and outer ring of SWG. Bending Diameter from 200mm to 4000mm. Suitable small lot and many sizes production.


Send Inquiry


Description
Specification as following:
STYLE KXT E2000B Ring Bending Machine for SWG IR and OR
Bending Ring thickness 3mm, 4mm
Maximum ring OD 4000mm
Minimum ring ID 200mm
Total power 2.2kw
Spindle motor power 1.5kw
Power supply voltage 380V/220V as request, 3 phases
linear speed 120mm/s
Machine measurement 1000*700*900mm
Machine net weight 280kg
