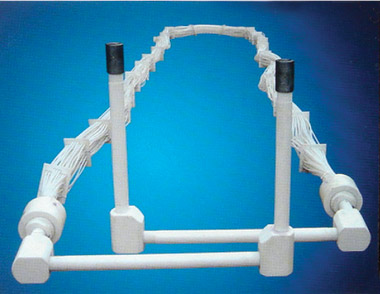

PTFE Heat Exchanger

Kaxite is one of the leading China PTFE Heat Exchanger suppliers and manufacturers, and with productive factory, welcome to wholesale PTFE Heat Exchanger products from us.


Send Inquiry


Description
[ Features ]
PTFE heat exchanger contains two parts, PTFE extruded tubings which are manufactured by dispersion raw materials and PTFE sticks which are manufactured by suspension raw materails. PTFE has reiable properties of anticorrosive, not aging, heat resistance, non-stick and self-lubrication. So PTFE heat exchanger has a wide application, long life of use. It is stable and easy to clean and install, all of which makes it the most ideal heat exchanger.

[ Main properties ]

Properties

Unit

Result

Tensile strength (min)

MPa

15

Ultimate elongation (min)

%

160
Heat Exchange Rate (min)
%
90
Temperature Limit
250
Compressive Strength
MPa
0.4
[ Applications ]
Grooves of acid, plating bath chromeplate bath, etc.
[ Types and Parameters ]

Number of Tubings

Tubing Size

Heat Exchange Area (m2)

10
6X1200
2.26
25
5.65
50
11.30

GS-U Type GS-L Type GS-O Type
