PTFE Gasket

With professional PTFE Gasket factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Gasket manufacturers and suppliers.


Send Inquiry


Description
With professional PTFE Gasket factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Gasket manufacturers and suppliers.
[ Features ]

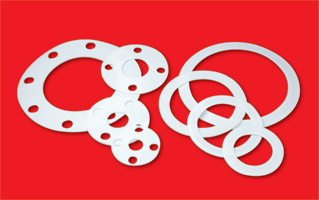

PTFE gasket is manufactured by molding method with PTFE granular resin. PTFE compared with other plastics, has a superior properties against chemicals and temperature.
Because of such excellent properties, PTFE has a wide application as a sealing material.


[ Specifications ]

No.

Type

Standard

Type

Standard

1

RF 10A

Φ53XΦ18X3t

FF 10A

Φ90XΦ18X3t

2

RF 15A

Φ58XΦ22X3t

FF 15A

Φ95XΦ22X3t

3

RF 20A

Φ63XΦ28X3t

FF 20A

Φ100XΦ28X3t

4

RF 25A

Φ74XΦ35X3t

FF 25A

Φ125XΦ35X3t

5

RF 32A

Φ84XΦ43X3t

FF 32A

Φ135XΦ43X3t

6

RF 40A

Φ89XΦ49X3t

FF 40A

Φ140XΦ49X3t

7

RF 50A

Φ104XΦ61X3t

FF 50A

Φ155XΦ61X3t

8

RF 65A

Φ124XΦ77X3t

FF 65A

Φ175XΦ77X3t

9

RF 80A

Φ134XΦ90X3t

FF 80A

Φ185XΦ90X3t

10

RF 90A

Φ144XΦ102X3t

FF 90A

Φ195XΦ102X3t

11

RF 100A

Φ159XΦ115X3t

FF 100A

Φ210XΦ115X3t

12

RF 125A

Φ190XΦ141X3t

FF 125A

Φ250XΦ141X3t

13

RF 150A

Φ220XΦ167X3t

FF 150A

Φ280XΦ167X3t

14

RF 200A

Φ270XΦ218X3t

FF 175A

Φ305XΦ192X3t

15

RF 225A

Φ290XΦ244X3t

FF 200A

Φ330XΦ218X3t

16

RF 250A

Φ333XΦ270X3t

FF 250A

Φ400XΦ270X3t

17

RF 300A

Φ378XΦ321X3t

FF 300A

Φ445XΦ321X3t

18

RF 350A

Φ423XΦ359X3t

FF 350A

Φ490XΦ359X3t

19

RF 400A

Φ486XΦ410X3t

FF 400A

Φ560XΦ410X3t

20

RF 450A

Φ541XΦ460X3t

FF 450A

Φ620XΦ460X3t

21

RF 500A

Φ596XΦ513X3t

FF 500A

Φ675XΦ513X3t

22

RF 600A

Φ700XΦ615X3t

FF 550A

Φ745XΦ564X3t




FF 600A

Φ795XΦ615X3t

[ Main properties ]

Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

15.0

Ultimate elongation (min)(min)

%

150

[ Applications ]
Sealing material.
