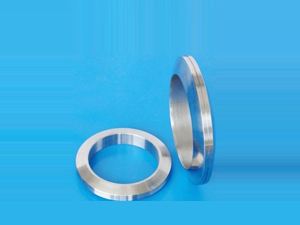

  • Lens Ring Joint Gasket
    Lens Ring Joint Gasket

    Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Lens Ring Joint Gasket manufacturers in China, welcome to wholesale low price Lens Ring Joint Gasket from our factory

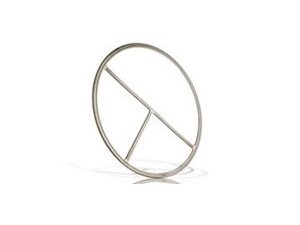

  • Double Jacket Gasket
    Double Jacket Gasket

    Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Double Jacket Gasket manufacturers in China, welcome to wholesale low price Double Jacket Gasket from our factory

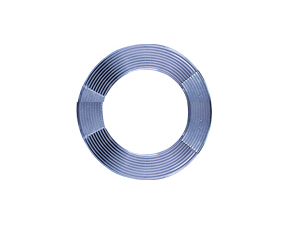

  • Corrugated Gaskets
    Corrugated Gaskets

    Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Corrugated Gaskets manufacturers in China, welcome to wholesale low price Corrugated Gaskets from our factory

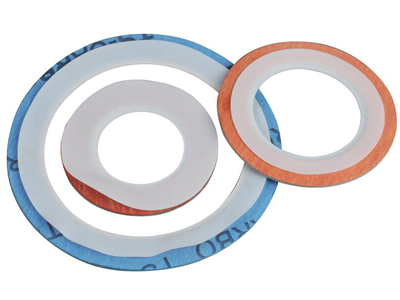

  • PTFE Envelope Gasket
    PTFE Envelope Gasket

    Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading PTFE Envelope Gasket manufacturers in China, welcome to wholesale low price PTFE Envelope Gasket from our factory

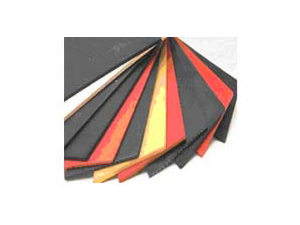

  • Rubber Sheet
    Rubber Sheet

    Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Rubber Sheet manufacturers in China, welcome to wholesale low price Rubber Sheet from our factory

Products

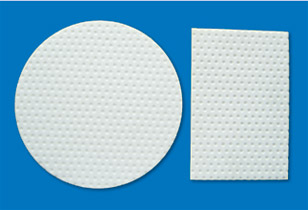

PTFE Bearing Slide

With professional PTFE Bearing Slide factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Bearing Slide manufacturers and suppliers.


Send Inquiry


Description
[ Features ]
PTFE bearing slide is made from high strength PTFE suspension resin by methods of moulding, sintering and finalizing the design to various sizes. Different fillings can be used to achieve special demands. It can also be adhered to rubber and metal with one side etched.
PTFE has very low coefficient of friction, it is anticorrosive and not aging, can be widely used in temperature from -180 to +260.


[ Main properties ]

Properties

Unit

Result

Apparent density
g/cm3
2.10-2.25

Tensile strength (min)

MPa

30

Ultimate elongation (min)

%

250
[ Specifications ]
Round Type
Diameter(mm)
Thickness (mm)
Diameter(mm)
Thickness (mm)
Diameter(mm)
Thickness (mm)
Φ140
6-8
Φ240
6-8
Φ415
6-8
Φ150
6-8
Φ260
6-8
Φ636
6-8
Φ160
6-8
Φ300
6-8
Φ740
6-8
Φ180
6-8
Φ320
6-8
Φ852
6-8
Φ210
6-8
Φ340
6-8



Square Type
Standard (mm)
Thickness (mm)
300X300
5-10
400X400
5-10
500X500
5-10
600X600
5-10
800X800
5-10
900X900
5-10
1000X1000
5-10
[ Applications ]
Bridge bearing slide, building slide, vehicle slide.
